Viair 485c Dual Pack Gen 2 Stealth Black 200 Psi Air Compressor
Value Pack
USD $602.95
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!

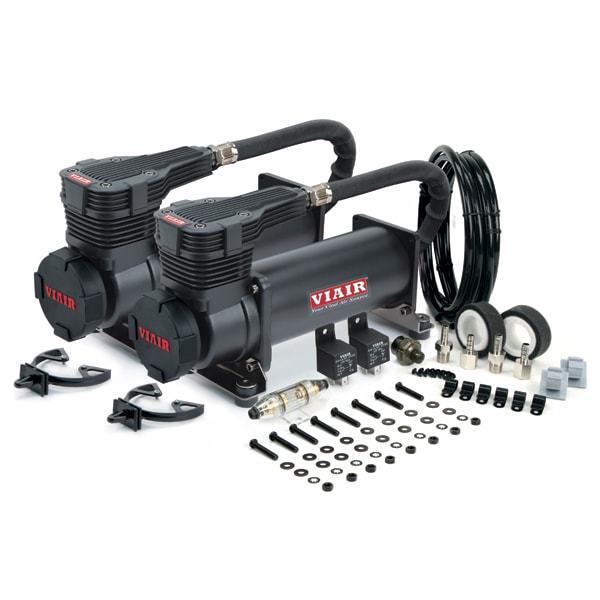

Viair 485c Stealth Black Compressor Gen 2 Design Dual Pack Kit, Part # 48532
Contact Us With Questions Free Shipping to 48 States
Product Description:
VIAIR’s new 485C compressor delivers groundbreaking performance, rated at 100% duty at 200 PSI. This next generation unit is a true 200 PSI-rated working pressure pump. The 485C Dual Performance Value Pack features two 12V 485C compressors with newly-developed head design with increased duty cycle and quieter decibel levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
Kit Includes:
– (2) 485C (Stealth Black) Compressors– (2) Air Filter Assemblies– (2) VIAIR Removable Filter Covers– (2) Remote Mount Brackets– (2) Sets of Remote Mount Fittings– (2) Sets of Spare Air Filter Elements– (2) Leader Hose Clips– (6) Air Line Clips with Included Hardware– (8) Sets of Nuts, Bolts, Washers and Lock Washers– (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)– (2) 40-Amp Relays– (1) One Pressure Switch (165 PSI on, 200 PSI off)– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve– Air Line (For Remote Mount Filter Installation)
Specifications:
– 12-Volt– Permanent Magnetic Motor– Duty Cycle: 100% @ 200 PSI– Max. Working Pressure: 200 PSI– Max. Air Tank Size: 10.0 Gallon– Combined Max. Amp Draw: 42 Amps– Ingress Protection Rating: IP67– Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)– Net Weight: 22.10 lbs.
FILL RATES2.5 GALLON TANKFILL RATE0 to 200 PSI2 min. 20 sec. (± 05 sec.)165 to 200 PSI35 sec. (± 03 sec.)5.0 GALLON TANKFILL RATE0 to 200 PSI4 min. 50 sec. (± 15 sec.)165 to 200 PSI1 min. 15 sec. (± 05 sec.)
Contact Us With Questions Free Shipping to 48 States
Product Description:
VIAIR’s new 485C compressor delivers groundbreaking performance, rated at 100% duty at 200 PSI. This next generation unit is a true 200 PSI-rated working pressure pump. The 485C Dual Performance Value Pack features two 12V 485C compressors with newly-developed head design with increased duty cycle and quieter decibel levels. The 485C is available in Platinum or Stealth Black, and comes equipped with a stainless steel braided leader hose with an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
Kit Includes:
– (2) 485C (Stealth Black) Compressors– (2) Air Filter Assemblies– (2) VIAIR Removable Filter Covers– (2) Remote Mount Brackets– (2) Sets of Remote Mount Fittings– (2) Sets of Spare Air Filter Elements– (2) Leader Hose Clips– (6) Air Line Clips with Included Hardware– (8) Sets of Nuts, Bolts, Washers and Lock Washers– (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)– (2) 40-Amp Relays– (1) One Pressure Switch (165 PSI on, 200 PSI off)– (2) Stainless Steel Braided Leader Hoses with Inline Check Valve– Air Line (For Remote Mount Filter Installation)
Specifications:
– 12-Volt– Permanent Magnetic Motor– Duty Cycle: 100% @ 200 PSI– Max. Working Pressure: 200 PSI– Max. Air Tank Size: 10.0 Gallon– Combined Max. Amp Draw: 42 Amps– Ingress Protection Rating: IP67– Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)– Net Weight: 22.10 lbs.
FILL RATES2.5 GALLON TANKFILL RATE0 to 200 PSI2 min. 20 sec. (± 05 sec.)165 to 200 PSI35 sec. (± 03 sec.)5.0 GALLON TANKFILL RATE0 to 200 PSI4 min. 50 sec. (± 15 sec.)165 to 200 PSI1 min. 15 sec. (± 05 sec.)
